MZ31PTC Thermistor

Description: MZ31PTC thermistor for a variety of fluorescent lamp ballasts, electronic energy-saving lamps, the do not have to change lines, will be directly PTCR jumper tubes at both ends of the resonant capacitor, can be turned into electronic ballasts, energy-saving lamp starter hardware for pre - hot start, extended lamp life.

Introduction

◆Part Name:
MZ31PTC Thermistor
（General-type delayed start)

◆Features:
Small size
High voltage (800 ~ 1000VAC more)
Long life (more than 10,000 power switch)
Power of small

◆Applications:

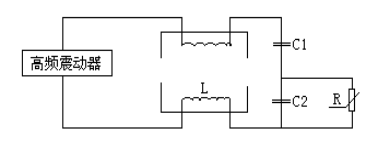

MZ31PTC thermistor for a variety of fluorescent lamp ballasts, electronic energy-saving lamps, the do not have to change lines, will be directly PTCR jumper tubes at both ends of the resonant capacitor, can be turned into electronic ballasts, energy-saving lamp starter hardware for pre - hot start, extended lamp life. Icons such as job circuit: connect the switch, R status in the ambient temperature, its resistance value much lower than the C2 value, current through C1, R form a loop so that filament preheating, after 0.4-2 second after, R self-heating temperature High Curie temperature reaches more than status, and its resistance is much larger than C2 resistor value, current through C1, C2 form a LC resonant circuit lead, resulting in high-pressure lamp lit.

◆Dimensions:

◆Product Coding/ How to Order:

①FACTORY Code
② PTC Thermistor
③ Part N0：
  2-- Over-Current Protection Series：
21—Coating Type；22—Disk Type；23—Plastics Type
3-- start-up delay Series：
31--conventional type；32—Complex Intelligent Type
  7-- degaussing in CRT of Color TV / Monitor Series：
71—Leading Type；
72--segmental shell Type(Single-element / 2Pin)；
  73--segmental shell Type(Double-element / 3Pin)
④Share of Leads：S--Straight；A--Axis Formed；N--In-Forming
⑤Disk Diameter：03--3mm；04--4mm；12--12mm
⑥Curie Temperture：
  L--50℃；V--60℃ ；M--75℃&80℃；K--90℃；N--100℃ Q--110℃；P--120℃；X--130℃；R--140℃；S--150℃
⑦Resistance of Zero-Rated Power：
  221-- 220Ω；472--4700Ω；R5--0.5Ω；4R7--4.7Ω；9R0--9.0Ω；180--18Ω
⑧Tolerance of Rated Resistance：
  J--±5% ；K-- ±10%；L --±15% ；M--±20%；V--±25%；N--±30%
⑨Withstanding Voltage：
800--800Vac；600--600Vac；270--270Vac
⑩Packing Type：B--Bulk；C—compilation

◆Technical Parameters:

N0	Part No	Rated zero Power resistance Rn(Ω)	Withstanding Voltage	Max. W.C I_max (mA)	Switching temperature (℃)	Dimensions (mm)
N0	Part No	Rated zero Power resistance Rn(Ω)	Withstanding Voltage	Max. W.C I_max (mA)	Switching temperature (℃)	D_max	T_max	d
1	MZ 31S04L68RN360B	68±30%	360	200	50±7	4.5	5.5	0.5
2	MZ 31S04L101N400B	100±30%	400
3	MZ 31S04L151N400B	150±30%	400
4	MZ 31S04L221N500B	220±30%	500
5	MZ 31S04L331N600B	330±30%	600
6	MZ 31S04L471N600B	470±30%	600
7	MZ 31S04L681N600B	680±30%	600
8	MZ 31S04L102N600B	1000±30%	600
9	MZ 31S04L152N600B	1500±30%	600
10	MZ 31S04L222N600B	2200±30%	600	100
11	MZ 31S04L332N600B	3200±30%	600	70
12	MZ 31S04L472N600B	4700±30%	600	50
13	MZ 31S04M68RN360B	68±30%	360	200	75±7
14	MZ 31S04 M101N400B	100±30%	400
15	MZ 31S04M151N400B	150±30%	400
16	MZ 31S04M221N500B	220±30%	500
17	MZ 31S04M331N600B	330±30%	500
18	MZ 31S04M471N600B	470±30%	600
19	MZ 31S04M681N600B	680±30%	600
20	MZ 31S04M102N600B	1000±30%	600
21	MZ 31S04M152N600B	1500±30%	600	100
22	MZ 31S04M222N600B	2200±30%	600	100
23	MZ 31S04M332N600B	3200±30%	600	70
24	MZ 31S04M472N600B	4700±30%	600	50
25	MZ 31S04N68RN360B	68±30%	360	200	100±7
26	MZ 31S04N101N400B	100±30%	400
27	MZ 31S04N151N400B	150±30%	400
28	MZ 31S04N221N400B	220±30%	400
29	MZ 31S04N331N500B	330±30%	500
30	MZ 31S04N471N500B	470±30%	500
31	MZ 31S04N681N600B	680±30%	600
32	MZ 31S04N102N600B	1000±30%	600
33	MZ 31S04N152N600B	1500±30%	600	100
34	MZ 31S04P68RN360B	68±30%	360	200	120±7
35	MZ 31S04P101N400B	100±30%	400
36	MZ 31S04P151N400B	150±30%	400
37	MZ 31S04P221N400B	220±30%	400
38	MZ 31S04P331N500B	330±30%	500
39	MZ 31S04P471N500B	470±30%	500
40	MZ 31S04P681N600B	680±30%	600

N0	Part No	Rated zero Power resistance Rn(Ω)	Withstanding Voltage	Max. W.C I_max (mA)	Switching temperature (℃)	Dimensions (mm)
N0	Part No	Rated zero Power resistance Rn(Ω)	Withstanding Voltage	Max. W.C I_max (mA)	Switching temperature (℃)	D_max	T_max	d
41	MZ 31S06L68RN420B	68±30%	420	400	50±7	6.5	5.5	0.6
42	MZ 31S06L101N420B	100±30%	420
43	MZ 31S06L151N500B	150±30%	500
44	MZ 31S06L221N500B	220±30%	500
45	MZ 31S06L331N600B	330±30%	600
46	MZ 31S06L471N600B	470±30%	600
47	MZ 31S06L681N600B	680±30%	600	300
48	MZ 31S06L102N600B	1000±30%	600	300
49	MZ 31S06L152N600B	1500±30%	600	150
50	MZ 31S06L222N600B	2200±30%	600	100
51	MZ 31S06M68RN420B	68±30%	420	400	75±7
52	MZ 31S06M101N420B	100±30%	420
53	MZ 31S06M151N500B	150±30%	500
54	MZ 31S06M221N500B	220±30%	500
55	MZ 31S06M331N600B	330±30%	600
56	MZ 31S06M471N600B	470±30%	600
57	MZ 31S06M681N600B	680±30%	600	300
58	MZ 31S06M102N600B	1000±30%	600	300
59	MZ 31S06M152N600B	1500±30%	600	150
60	MZ 31S06M222N600B	2200±30%	600	100
61	MZ 31S06N68RN400B	68±30%	400	400	100±7
62	MZ 31S06N101N400B	100±30%	400
63	MZ 31S06N151N400B	150±30%	400
64	MZ 31S06N221N500B	220±30%	500
65	MZ 31S06N331N600B	330±30%	600
66	MZ 31S06N471N600B	470±30%	600
67	MZ 31S06N681N600B	680±30%	600	300
68	MZ 31S06N102N600B	1000±30%	600	300
69	MZ 31S06P68RN400B	68±30%	400	400	120±7
70	MZ 31S06P101N400B	100±30%	400
71	MZ 31S06P151N400B	150±30%	400
72	MZ 31S06P221N500B	220±30%	500
73	MZ 31S06P331N600B	330±30%	600
74	MZ 31S06P471N600B	470±30%	600

N0	Part No	Rated zero Power resistance Rn(Ω)	Withstanding Voltage	Max. W.C I_max (mA)	Switching temperature (℃)	Dimensions (mm)
N0	Part No	Rated zero Power resistance Rn(Ω)	Withstanding Voltage	Max. W.C I_max (mA)	Switching temperature (℃)	D_max	T_max	d
75	MZ 31S08L68RN400B	68±30%	400	800	50±7	8.5	5.5	0.6
76	MZ 31S08L101N500B	100±30%	500
77	MZ 31S08L151N500B	150±30%	500
78	MZ 31S08L221N600B	220±30%	600
79	MZ 31S08L331N600B	330±30%	600	600
80	MZ 31S08L471N600B	470±30%	600	450
81	MZ 31S08L681N600B	680±30%	600	300
82	MZ 31S08L102N600B	1000±30%	600	200
83	MZ 31S08K68RN400B	68±30%	400	800	90±7
84	MZ 31S08K101N500B	100±30%	500
85	MZ 31S08K151N500B	150±30%	500
86	MZ 31S08K221N600B	220±30%	600
87	MZ 31S08K331N600B	330±30%	600	600
88	MZ 31S08K471N600B	470±30%	600	450
89	MZ 31S08K681N600B	680±30%	600	300
90	MZ 31S08K102N600B	1000±30%	600	200
91	MZ 31S08N68RN400B	68±30%	400	800	100±7
92	MZ 31S08N101N500B	100±30%	500
93	MZ 31S08N151N500B	150±30%	500
94	MZ 31S08N221N600B	220±30%	600
95	MZ 31S08N331N600B	330±30%	600	600
96	MZ 31S08N471N600B	470±30%	600	450
97	MZ 31S08N681N600B	680±30%	600	300
98	MZ 31S08N102N600B	1000±30%	600	200

☆ Designed according to customers request special customized specifications Product。
